PRANA
![](../data/file/b09/3067132105_ibRmWuhN_20.png) |
¨ª Prâna´Â ÇÁ¶û½º¿¡ À§Ä¡ÇÑ RF ±¤´ë¿ª Amplifier ¼³°è
¹× Á¦Á¶¾÷ü
¨ª ÃÖ´ë 12kWÀÇ Ãâ·ÂÀ¸·Î 10kHz – 6GHzÀÇ ÁÖÆļö ¹üÀ§¸¦ Ä¿¹ö
¨ª Prâna Amplifier´Â ¼º´É, ½Å·Ú¼º ¹× Ç°Áú·Î ¾Ë·ÁÁ® ÀÖÀ¸¸ç Àü¼¼°èÀûÀ¸·Î
ÆǸŵǴ Ãß¼¼
¨ª ¸ðµç Amplifier´Â Class A Solid state
|
|

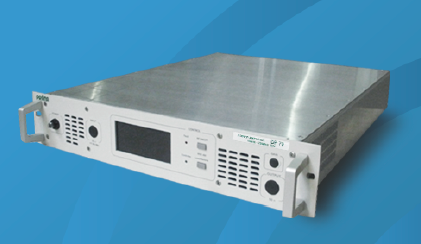

DP70
![](../data/file/b09/1893461394_k8jU4QRa_DP70.png) |
* 10 kHz - 250 MHz / 70 Watts
* Class A solid state
* Typical output power : 70 W CW
* Linear output power (1 dB
compression) guaranted with harmonics <-20 dBc: P1dB >50 W and H<-20dBc
|
|

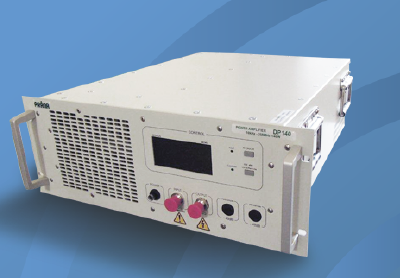

DP140
![](../data/file/b09/1893461394_TZnlRWbY_DP140.png) |
*10 kHz - 250 MHz
* Class A solid state * Linear output power (1 dB
compression) guaranted with harmonics <-20 dBc:
|
|

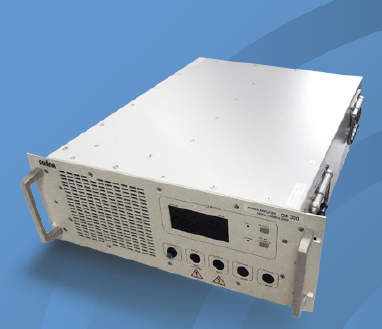

DP300
![](../data/file/b09/1893461394_0Bj6AsgR_DP300.png) |
* 10 kHz - 250 MHz / 300 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >200 W and H<-20dBc
|
|

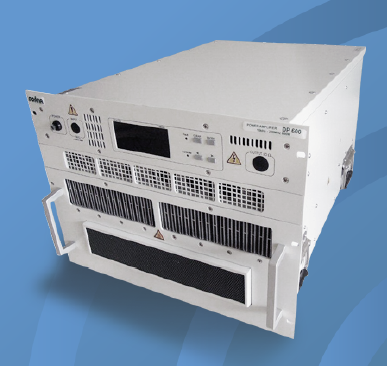

DP600
![](../data/file/b09/1893461394_Ci2xqaZE_DP600.png) |
* 10 kHz - 250 MHz / 600 W CW
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >400 W and H
<-20 dBc
|
|

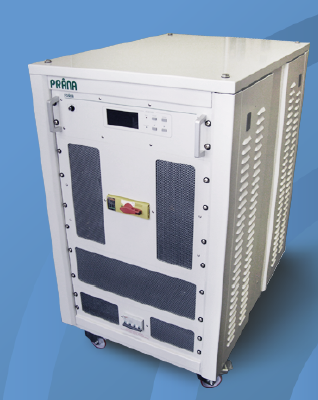

DP1000
![](../data/file/b09/1893461394_dPgKLGwQ_DP1000.png) |
* 10 kHz - 250 MHz / 1000 W CW
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20
dBc:
|
|

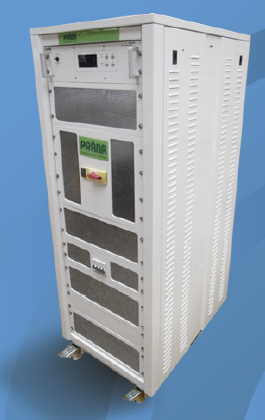

DP2200
![](../data/file/b09/1893461394_wuzZDvM8_DP2200.png) |
* 10 kHz - 250 MHz / 2200 W CW
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20
dBc:
P1dB>1200 W and H<-20
dBc
|
|

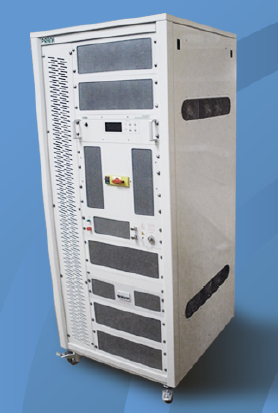

DP3500
![](../data/file/b09/1893461394_7dfXgeZK_DP3500.png) |
* 10 kHz - 250 MHz / 3500 W CW
* Class A solid state
* Linear output power (1 dB
compression) guaranted with harmonics <-20 dBc:
P1dB > 2500 W and H<-20 dBc up
to 100 MHz P1dB > 2000 W and H<-20 dBc
from 100 to 250 MHz
|
|

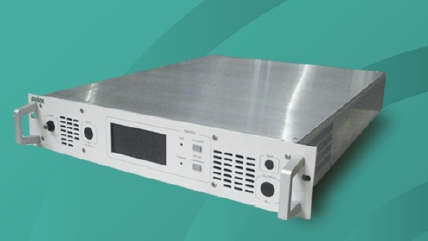

DR60
![](../data/file/b09/1893461394_8BpJD6aI_DR60.png) |
* 10 kHz - 400 MHz / 60 W CW
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 40 W and H<-20 dBc up to 250 MHz P1dB
> 25 W and H<-20 dBc from 250 MHz
to 400 MHz
|
|

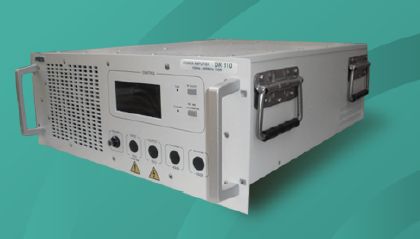

DR110
![](../data/file/b09/1893461394_AsEev1jX_DR110.png) |
* 10 kHz - 400 MHz / 110 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >95 W and H<-20dBc up to 250 MHZ P1DB>45W and H<-20dbc from 250MHz to 400MHZ
|
|
DR220
![](../data/file/b09/1893461394_hpfPUrCL_DR60.png) |
* 10 kHz - 400 MHz / 220 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc: P1dB >140 W and H<-20dBc
|
|

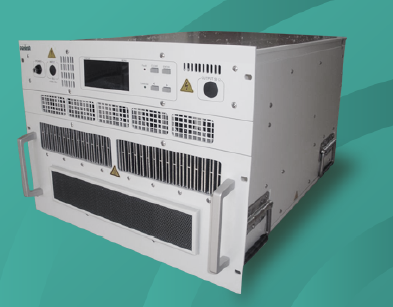

DR400
![](../data/file/b09/1893461394_hjZnGWUR_DR400.png) |
* 10 kHz - 400 MHz / 400 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >300 W and H<-20dBc up to 250 MHZ P1DB>150W and H<-20dbc from 250MHz to 400MHZ
|
|

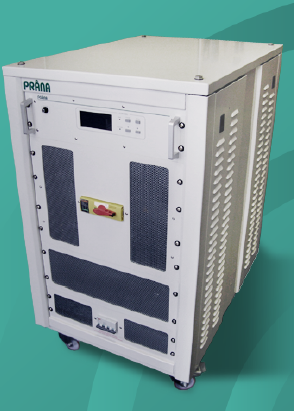

DR600
![](../data/file/b09/1893461394_mcptP2Cf_DR600.png) |
* 10 kHz - 400 MHz / 600 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >500 W and H<-20dBc up to 250 MHZ
P1DB>300W and H<-20dbc from 250MHz to 400MHZ
|
|

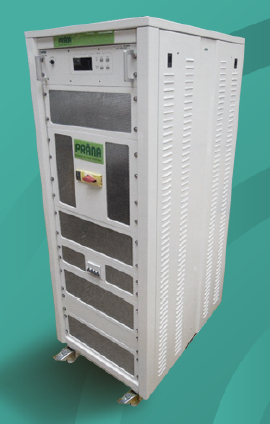

DR1200
![](../data/file/b09/1893461394_Bop2a5He_DR1200.png) |
* 10 kHz - 400 MHz / 1200 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc: P1dB >1000 W and H<-20dBc up to 250 MHZ
P1DB>400W and H<-20dbc from
250MHz to 400MHZ
|
|

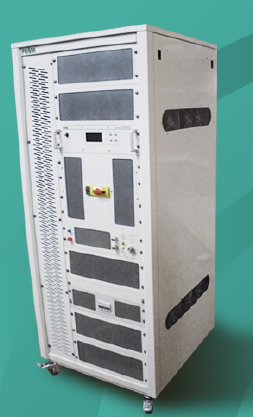

DR2000
![](../data/file/b09/1893461394_VbtgSwuG_DR2000.png) |
* 10 kHz - 400 MHz / 2000 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >1500 W and H<-20dBc up to 250 MHZ P1DB>1000W
and H<-20dbc from 250MHz to 400MHZ
|
|

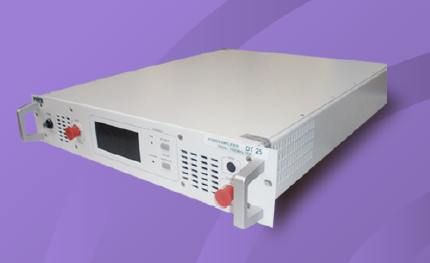

DT25
![](../data/file/b09/1893461394_GDPEf2je_DT25.png) |
* 10 kHz - 1000 MHz / 25 Watts
* Class A solid state
* Linear output power (1 dB
compression) guaranted with harmonics <-20 dBc:
P1dB >20 W and H<-20dBc up to 450MHZ P1DB>10 W and H<-20 dbc from
450MHZ to 1000MH
|
|

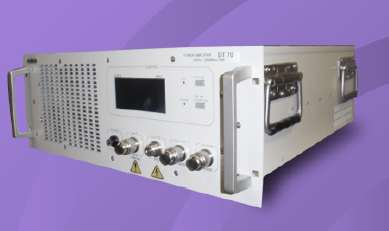

DT70
![](../data/file/b09/1893461394_mdnulCTe_DT70.png) |
* 10 kHz - 1000 MHz / 70 Watts
* Class A solid state
* Linear output power (1 dB
compression) guaranted with harmonics <-20 dBc:
P1dB >50 W and H<-20dBc up to
500MHZ P1dB >30 W and H<-20dBc from
500MHZ to 1000MH
|
|

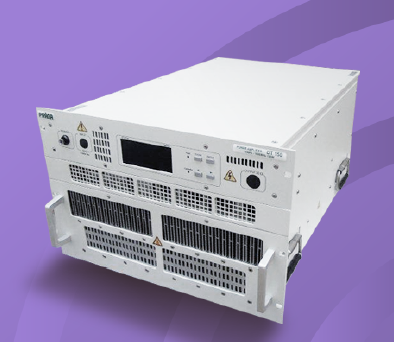

DT150
![](../data/file/b09/1893461394_nYsqePSX_DT150.png) |
* 10 kHz - 1000 MHz / 150 Watts
* Class A solid state
* Linear output power (1 dB
compression) guaranted with harmonics <-20 dBc:
P1dB >120 W and H<-20dBc up to
400MHZ P1dB >50 W and H<-20dBc from 400MHZ to 1000MHZ
|
|

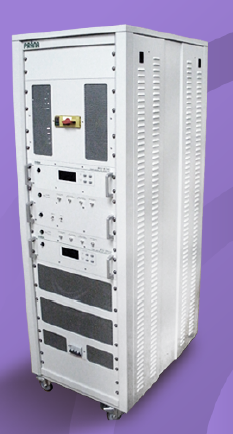

DT600
![](../data/file/b09/1893461394_BSRzEiT0_DT600.png) |
* 10 kHz - 1000 MHz / 600 Watts
* Class A solid state
* Linear output power (1 dB
compression) guaranted with harmonics <-20 dBc:
P1dB >500 W and H<-20dBc up to
500MHZ P1dB >400 W and
H<-20dBc from 500MHZ to 1000MHZ
|
|

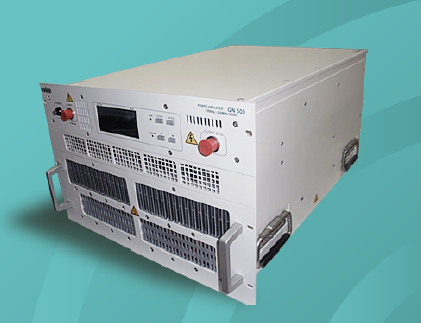

GN500
![](../data/file/b09/1893461394_Qn9aZXlP_GN500.png) |
* 100 kHz - 200 MHz / 500 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >500 W and H<-20dBc up to 100MHZ P1dB >200 W and H<-20dBc from 100MHZ to 200MHZ
|
|

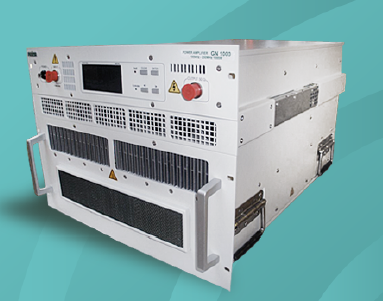

GN1000
![](../data/file/b09/1893461394_rUXfig2h_GN1000.png) |
* 100 kHz - 200 MHz / 1000 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >900 W and H<-20dBc up to 100MHZ P1dB >380 W and H<-20dBc from 100MHZ to 200MHZ
|
|

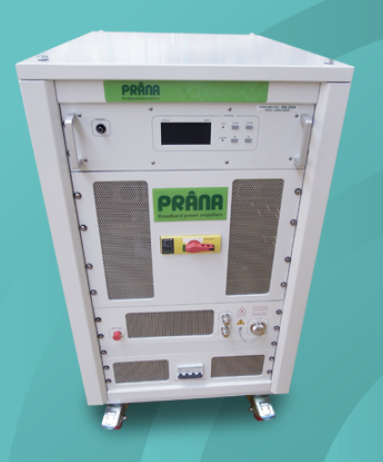

GN2000
![](../data/file/b09/1893461394_OERrp16o_GN2000.png) |
* 100 kHz - 200 MHz / 2000 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >1700 W and H<-20dBc up to 100MHZ P1dB >800 W and H<-20dBc from 100MHZ to 200MHZ
|
|

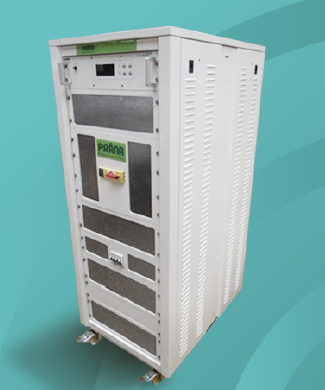

GN3500
![](../data/file/b09/1893461394_m0P37H89_GN3500.png) |
* 100 kHz - 200 MHz / 3500 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >3000 W and H<-20dBc up to 100MHZ P1dB >1200 W and H<-20dBc from 100MHZ to 200MHZ
|
|

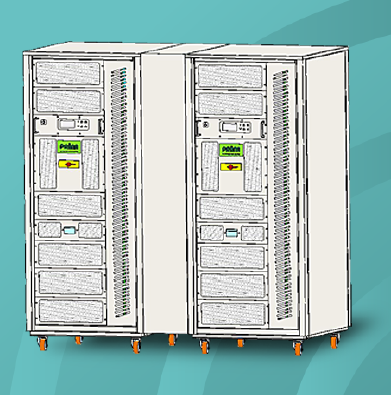

GN7000
![](../data/file/b09/1893461394_cgDpLH7W_GN7000.png) |
* 100 kHz - 200 MHz / 7000 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >5000 W and H<-20dBc up to 100MHZ P1dB >2000 W and H<-20dBc from 100MHZ to 200MHZ
|
|

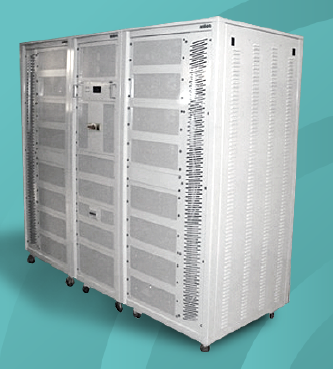

GN12000
![](../data/file/b09/1893461394_6Q8UsHZN_GN12000.png) |
* 100 kHz - 200 MHz / 12000 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >10000 W and H<-20dBc up to 100MHZ P1dB >5000 W and H<-20dBc from 100MHZ to 200MHZ
|
|

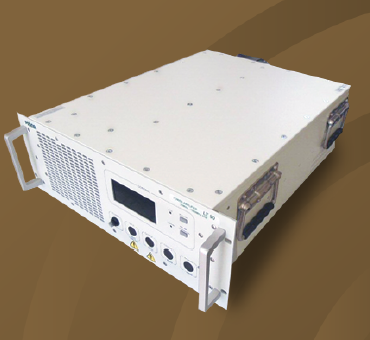

LT90
![](../data/file/b09/1893461394_oexiBk37_LT90.png) |
* 20 kHz - 1000 MHz / 90 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >60 W and H<-20dBc P1dB >75 W and H<-20dBc P1dB >45 W and H<-20dBc
|
|

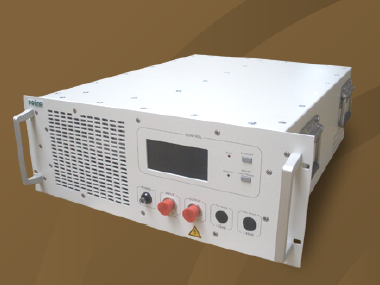

LT160
![](../data/file/b09/1893461394_2ciDLBoR_LT160.png) |
* 20 kHz - 1000 MHz / 160 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >80 W and H<-20dBc from 30MHZ to 80 MHZ
P1dB >140 W and H<-20dBc from 80MHZ to 500 MHZ P1dB >100 W and H<-20dBc from 500MHZ to 1000
MHZ
|
|

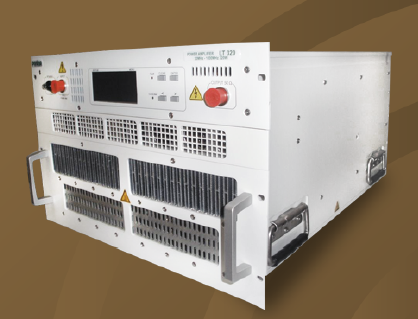

LT320
![](../data/file/b09/1893461394_ghm3KCME_LT320.png) |
* 20 kHz - 1000 MHz / 320 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >280 W and H<-20dBc from 20MHZ to 500 MHZ P1dB >200 W and H<-20dBc from 500MHZ to 1000
|
|

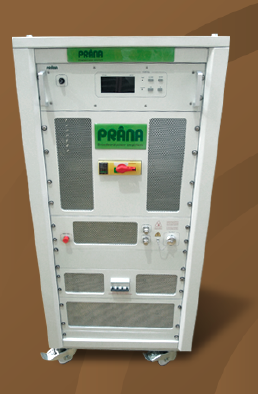

LT600
![](../data/file/b09/1893461394_7ugtJRQy_LT600.png) |
* 20 kHz - 1000 MHz / 600 Watts
* Class A solid state
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >350 W and H<-20dBc from 30MHZ to 80 MHZ
P1dB >600 W and H<-20dBc from 80MHZ to 600 P1dB >350 W and H<-20dBc from 600MHZ to 1000
|
|

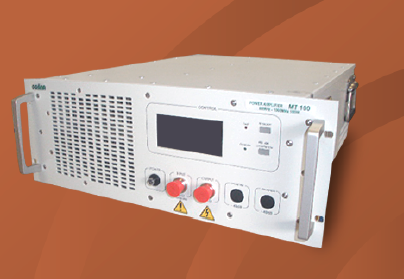

MT100
![](../data/file/b09/1893461394_A26boHry_MT100.png) |
* 80 MHz - 1000 MHz
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 80 W and H < -20 dBc up to 500 MHz and
P1dB > 60 W and H < -20 dBc from 500 MHz to 1000 MHz
|
|

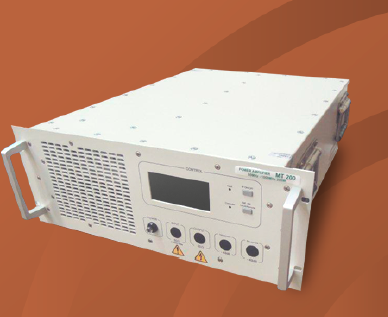

MT200
![](../data/file/b09/1893461394_EYvnTWHl_MT200.png) |
*80 MHz - 1000 MHz / 200 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 140 W and H < -20 dBc up to 600 MHz
P1dB > 110 W and H < -20 dBc from 600 MHz to 1000 MHz
|
|

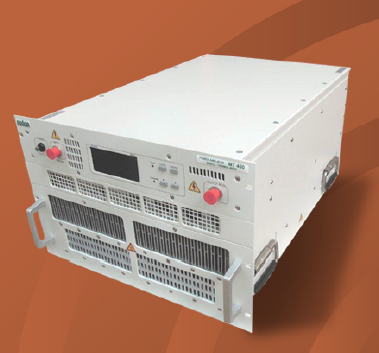

MT400
![](../data/file/b09/1893461394_91PHSVzp_MT400.png) |
*80 MHz - 1000 MHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 350 W and H < -20 dBc up to 500 MHz
P1dB > 220 W and H < -20 dBc from 500 MHz to 1000 MHz
|
|

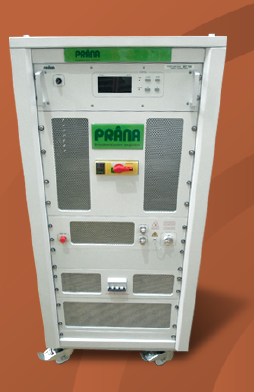

MT700
![](../data/file/b09/1893461394_kITZHmnR_MT700.png) |
*80 MHz - 1000 MHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 600 W and H < -20 dBc up to 500 MHz
P1dB > 400 W and H < -20 dBc from 500 MHz to 1000 MHz
|
|

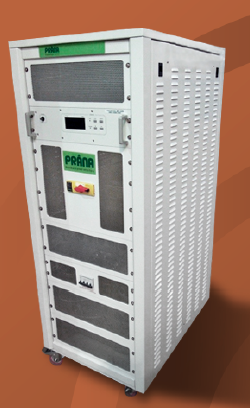

MT1200
![](../data/file/b09/1893461394_flR09kAG_MT1200.png) |
*80 MHz - 1000 MHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 1000 W and H < -20 dBc up to 500 MHz
P1dB > 700 W and H < -20 dBc from 500 MHz to 1000 MHz
|
|

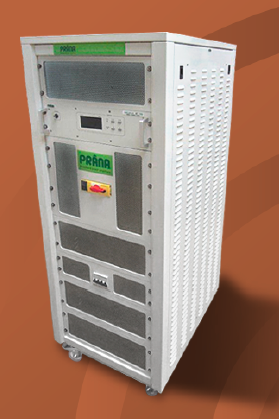

MT1400
![](../data/file/b09/1893461394_tBQwzku9_MT1400.png) |
*80 MHz - 1000 MHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 1200 W and H < -20 dBc up to 400 MHz and
P1dB > 700 W and H < -20 dBc from 400 MHz to 1000 MHz
|
|

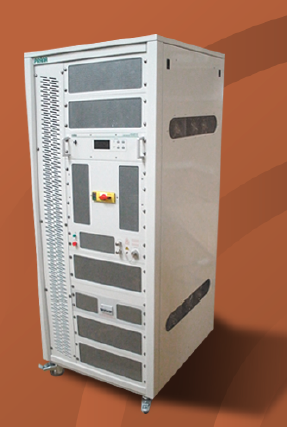

MT1700
![](../data/file/b09/1893461394_6eVEHtxL_MT1700.png) |
*80 MHz - 1000 MHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 1500 W and H < -20 dBc up to 600 MHz
P1dB > 1200 W and H < -20 dBc from 600 MHz to 1000 MHz
|
|

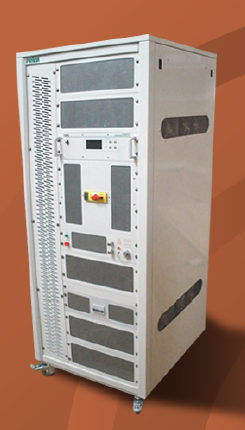

MT2000
![](../data/file/b09/1893461394_iKwBAPqy_MT2000.png) |
*80 MHz - 1000 MHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 2000 W and H < -20 dBc up to 500 MHz
P1dB > 1200 W and H < -20 dBc from 500 MHz to 1000
|
|

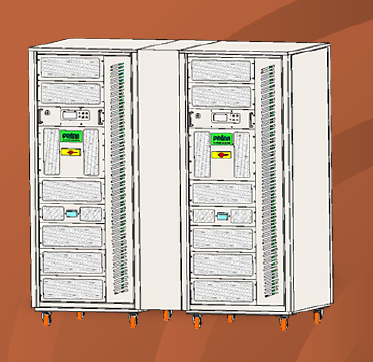

MT2800
![](../data/file/b09/1893461394_AD4w2K5p_MT2800.png) |
*80 MHz - 1000 MHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 2700 W and H < -20 dBc up to 500 MHz
P1dB > 1600 W and H < -20 dBc from 500 MHz to 1000 MHz
|
|

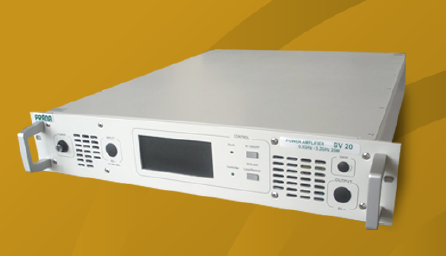

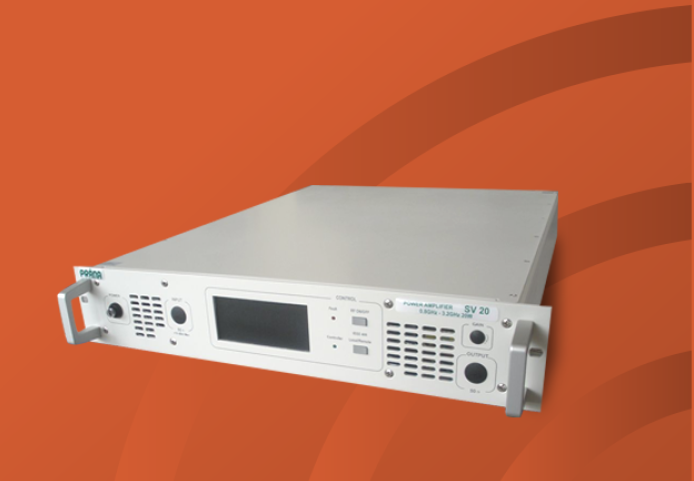

SV20
![](../data/file/b09/1893461394_0QbN6U8C_SV20.png) |
*800 MHz - 3200 MHz
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 14 W and H < -20 dBc
|
|

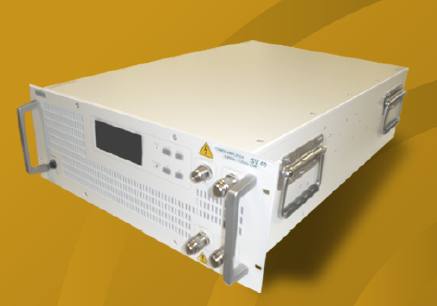

SV40
![](../data/file/b09/1893461394_jE4Loc8K_SV40.png) |
*800 MHz - 3200 MHz/40 W CW
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 30 W and H < -20 dBc up to 2 GHz
P1dB > 25 W and H < -20 dBc from 2 GHz to 3.2 GHz
|
|

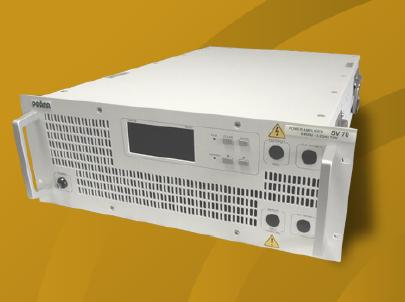

SV70
![](../data/file/b09/1893461394_Z0zvIFOC_SV70.png) |
*800 MHz - 3200 MHz /70W CW
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 70 W and H < -20 dBc up to 2 GHz
P1dB > 40 W and H < -20 dBc from 2 GHz to 3.2 GHz
|
|

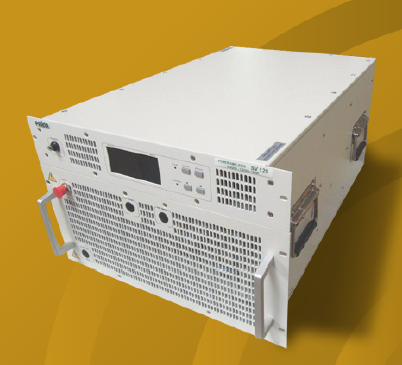

SV120
![](../data/file/b09/1893461394_yUeskBr8_SV120.png) |
*800 MHz - 3200 MHz
*Class A solid state
*Typical output power : 120 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 90 W and H < -20 dBc up to 2 GHz
P1dB > 70 W and H < -20 dBc from 2 GHz to 3.2 GHz
|
|

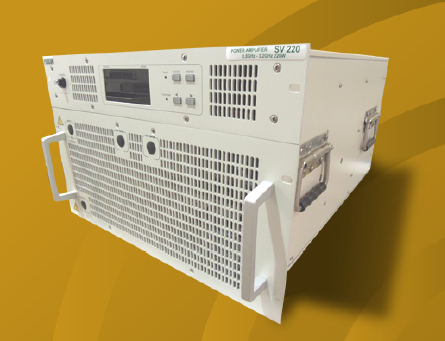

SV220
![](../data/file/b09/1893461394_uiWFfJxZ_SV220.png) |
* 800 MHz - 3200 MHz
*Class A solid state
*Typical output power : 220 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 180 W and H < -20 dBc up to 2 GHz
P1dB > 160 W and H < -20 dBc from 2 GHz to 3.2 GHz
|
|

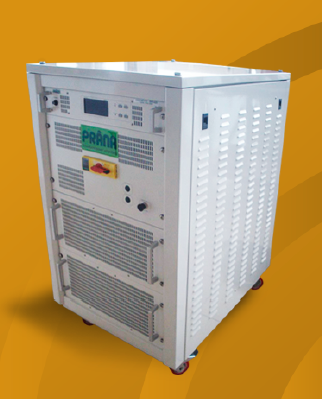

SV450
![](../data/file/b09/1893461394_x6C5s2n7_SV450.png) |
*800 MHz - 3200 MHz
*Class A solid state
*Typical output power : 450 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 300 W and H < -20 dBc up to 2 GHz
P1dB > 250 W and H < -20 dBc from 2 GHz to 3.2 GHz
|
|

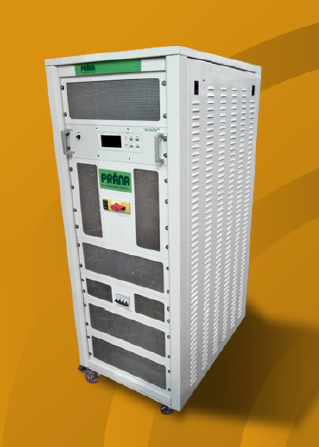

SV1000
![](../data/file/b09/1893461394_70wq1dN8_SV1000.png) |
* 800 MHz - 3200 MHz
* Class A solid state
* Typical output power : 1000 W CW
* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB >570 W and H<-20dBc up to 2 GHZ
P1dB >470 W and H<-20dBc from 2 GHZ
|
|

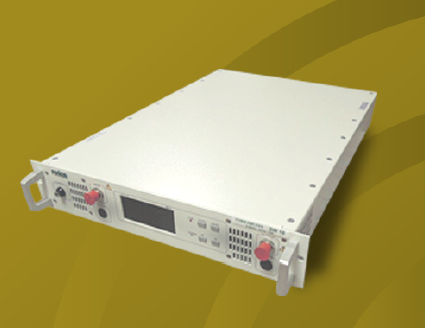

SW18
![](../data/file/b09/1893461394_9hQHodqV_SW18.png) |
*800 MHz - 4000 MHz /18 W CW
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 13 W and H < -20 dBc up to 2.5 GHz
P1dB > 12 W and H < -20 dBc from 2.5GHz to 4 GHz
|
|

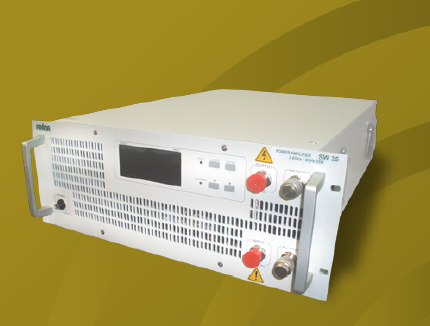

SW35
![](../data/file/b09/1893461394_4YaTyOHf_SW35.png) |
*800 MHz - 4000 MHz / 35W CW
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 25W and H < -20 dBc up to 3GHz
P1dB > 20 W and H < -20 dBc from 3GHz to 4 GHZ
|
|

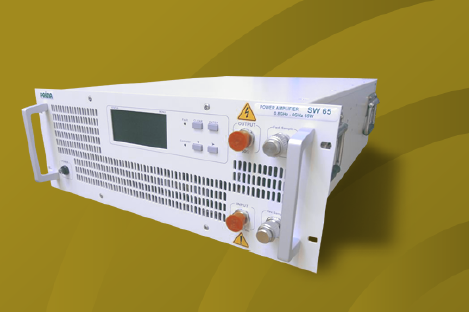

SW65
![](../data/file/b09/1893461394_qHGsc0Pu_SW65.png) |
*800 MHz - 4000 MHz /65 W CW
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 40W and H < -20 dBc up to 3GHz
P1dB > 30 W and H < -20 dBc from 3GHz to 4 GHZ
|
|
SW100
![](../data/file/b09/1893461394_kB8W1d37_sw100.png) |
*800 MHz - 4000 MHz / 100 W CW
*Class A solid state
*Broadband (instantaneous single band): 0.8 GHz – 4 GHz
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
p1dB > 70W and H < -20 dBc up to 3GHz
P1dB > 60 W and H < -20 dBc from 3GHz to 4 GHZ
|
|

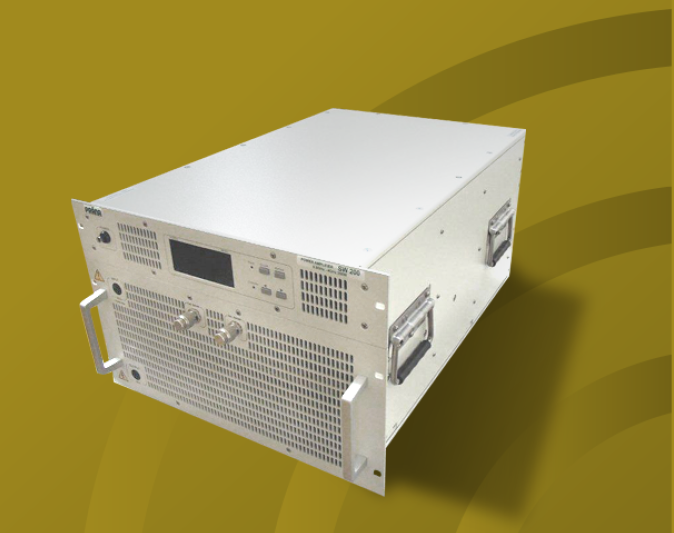

SW200
![](../data/file/b09/1893461394_LS8GlHv2_SW200.png) |
*800 MHz - 4000 MHz / 200W CW
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 140W and H < -20 dBc up to 3GHz
P1dB > 120 W and H < -20 dBc from 3GHz to 4 GHZ
|
|

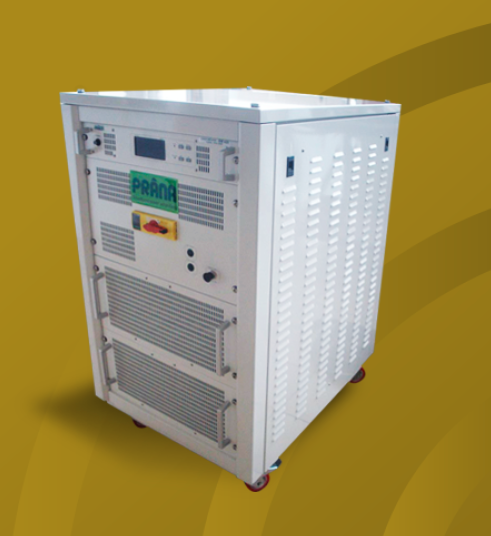

SW420
![](../data/file/b09/1893461394_uSVM4xtU_sw420.png) |
*800 MHz - 4000 MHz /420 WCW
*Class A solid state
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 300W and H < -20 dBc up to 3GHz
P1dB > 220 W and H < -20 dBc from 3GHz to 4 GHZ
|
|

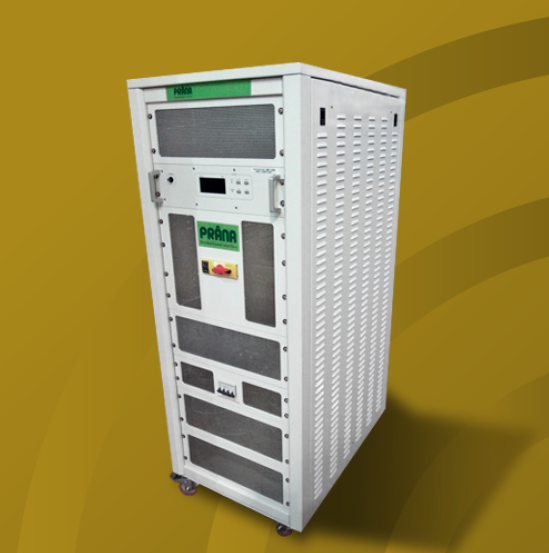

SW800
![](../data/file/b09/1893461394_GXxE2n6U_sw800.png) |
*800 MHz - 4000 MHz / 800 W CW
*Class A solid state
*Typical output power : 800 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 520W and H < -20 dBc up to 3GHz
P1dB > 420 W and H < -20 dBc from 3GHz to 4 GHZ
|
|
UX15
![](../data/file/b09/1893461394_DPzI2LsR_ux15.png) |
*2000 MHz - 6000 MHz
*Class A solid state
*Typical output power : 15 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 12W and H < -20 dBc up to 4GHz
P1dB > 11W and H < -20 dBc from 4GHz to 6GHZ
|
|

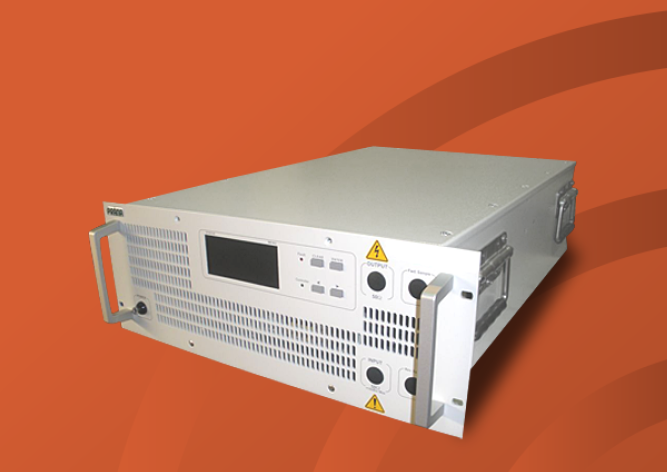

UX30
![](../data/file/b09/1893461394_slLukxMq_ux30.png) |
*2000 MHz - 6000 MHz
*Class A solid state
*Typical output power : 30 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 20W and H < -20 dBc up to 4GHz
P1dB > 17W and H < -20 dBc from 4GHz to 6GHZ
|
|

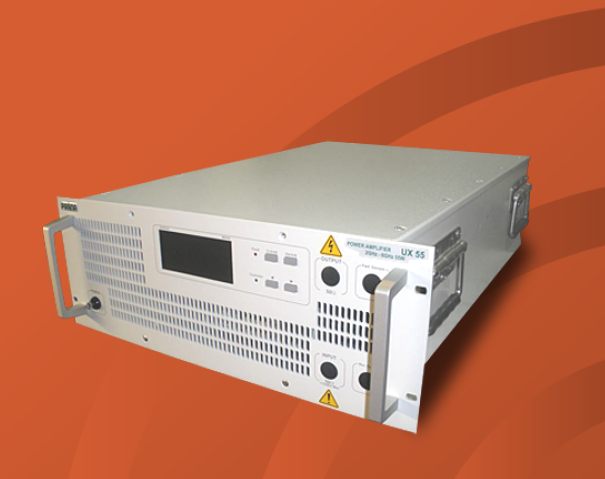

UX55
![](../data/file/b09/1893461394_rmbUnpCu_ux55.png) |
*2000 MHz - 6000 MHz
*Class A solid state
*Typical output power : 55 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 40W and H < -20 dBc up to 4GHz
P1dB > 35W and H < -20 dBc from 4GHz to 6GHZ
|
|

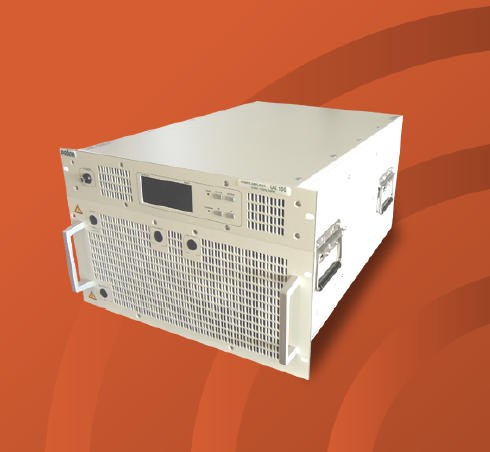

UX100
![](../data/file/b09/1893461394_2CtkHGdr_ux100.png) |
*2000 MHz - 6000 MHz
*Class A solid state
*Typical output power : 100W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 70W and H < -20 dBc up to 4GHz
P1dB > 55W and H < -20 dBc from 4GHz to 6GHZ
|
|

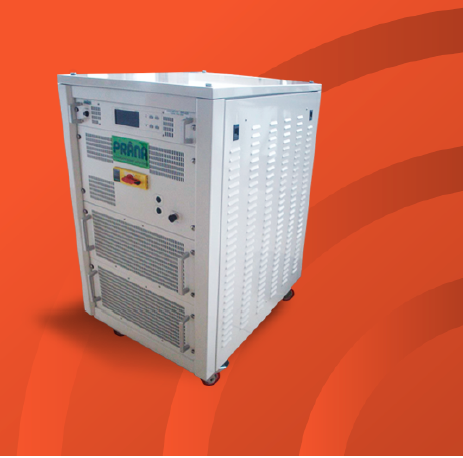

UX150
![](../data/file/b09/1893461394_1xNiwcd2_ux150.png) |
*2000 MHz - 6000 MHz
*Class A solid state
*Typical output power : 150W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 100W and H < -20 dBc up to 4GHz
P1dB > 80W and H < -20 dBc from 4GHz to 6GHZ
|
|

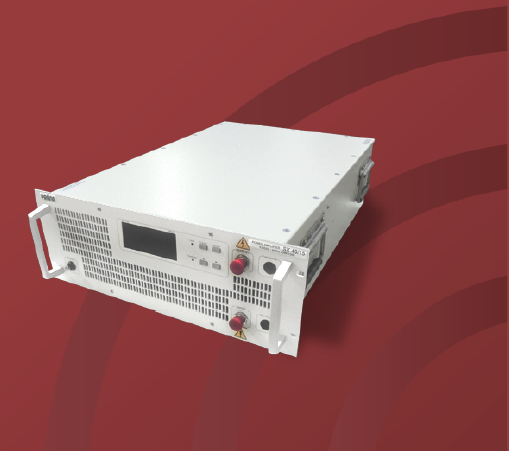

SX40/15
![](../data/file/b09/1893461394_aeYrKMom_sx4015.png) |
*800 MHz - 6000 MHz
*Class A solid state
*Typical output power : 40 W CW (0.8 – 3.2 GHz) and15 W CW (3.2 – 6 GHz)
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 25 W and H < -20 dBc up to 3.2 GHz
P1dB > 10 W and H < -20 dBc from 3.2 GHz to 6 GHz
|
|

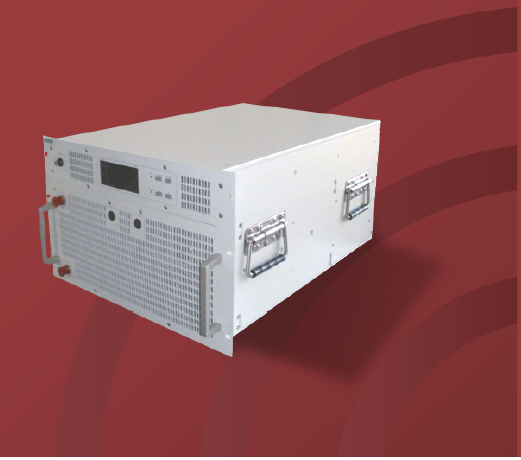

SX40/30
![](../data/file/b09/1893461394_UW2oDHix_sx4030.png) |
*800 MHz - 6000 MHz
*Class A solid state
*Typical output power : 40 W CW (0.8 – 3.2 GHz) and 30 W CW (3.2 – 6 GHz)
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 25 W and H < -20 dBc up to 3.2 GHz
P1dB > 16 W and H < -20 dBc from 3.2 GHz to 6 GHz
|
|

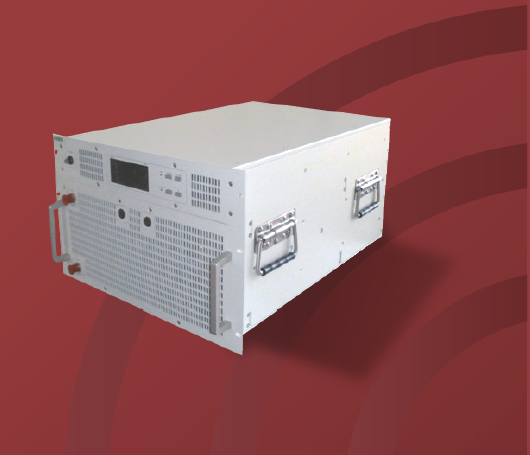

SX70/15
![](../data/file/b09/1893461394_sKtYxvUB_sx7015.png) |
*800 MHz - 6000 MHz
*Class A solid state
*Typical output power : 70 W CW (0.8 – 3.2 GHz) and 15 W CW (3.2 – 6 GHz)
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 40 W and H < -20 dBc up to 3.2 GHz
P1dB > 10 W and H < -20 dBc from 3.2 GHz to 6 GHz
|
|

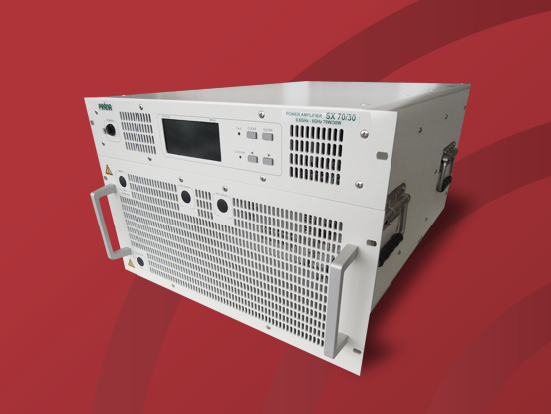

SX70/30
![](../data/file/b09/1893461394_1wgmyKpQ_sx111111111111111111.png) |
*800 MHz - 6000 MHz
*Class A solid state
*Typical output power : 70 W CW (0.8 – 3.2 GHz) and 30 W CW (3.2 – 6 GHz)
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 35 W and H < -20 dBc up to 3.2 GHz
P1dB > 16 W and H < -20 dBc from 3.2 GHz to 6 GHz
|
|

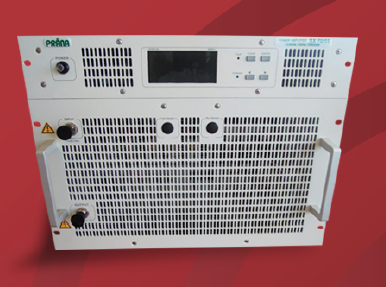

SX70/55
![](../data/file/b09/1893461394_2D15Aik7_SX7055.png) |
*800 MHz - 6000 MHz
*Class A solid state
*Typical output power : 70 W CW (0.8 – 3.2 GHz) and 55 W CW (3.2 – 6 GHz)
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
P1dB > 38 W and H < -20 dBc up to 3.2 GHz
P1dB > 32 W and H < -20 dBc from 3.2 GHz to 6 GHz
|
|

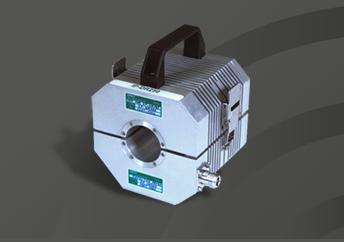

Pince IP-DR250
![](../data/file/b09/1893461394_geV3SOc6_ip-dr250.png) |
*Broadband (instanteous single band) : 10KHZ-400MHZ
*Typical power: 500 W cW
|
|
Data Sheet 352
![](../data/file/b09/1025579418_O43whySz_6.jpg) |
Frequency Range: 10 kHz - 5 GHz
|
|

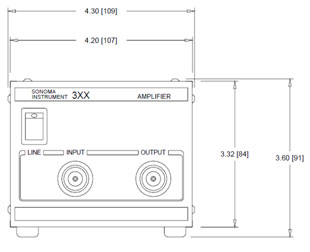

Data Sheet 354
![](../data/file/b09/1025579418_97cjngCa_5.jpg) |
Frequency Range: 10 kHz - 3 GHz
|
|

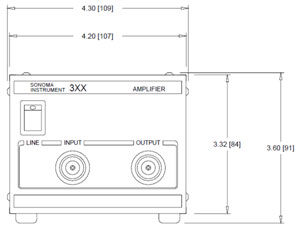

Data Sheet 317
![](../data/file/b09/1025579418_RdLJA2gj_4.jpg) |
Frequency Range: 10 kHz - 2.5 GHz
|
|

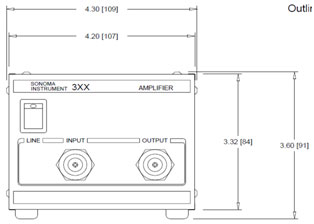

Data Sheet 330
![](../data/file/b09/1025579418_hIRvHOUb_3.jpg) |
Frequency Range: 10 kHz - 2.5 GHz
|
|
Data Sheet 310
![](../data/file/b09/1025579418_vuZP7kLw_2.jpg) |
Frequency Range: 9 kHz - 1 GHz
|
|

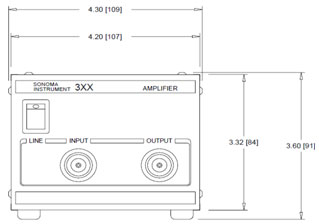

Data Sheet 315
![](../data/file/b09/1025579418_Nl74d0FQ_1.jpg) |
Frequency Range: 10 kHz - 1 GHz
Low noise, very high gain
|
|
