HFRA 5157
 |
Circular Transmitting Loop Antenna diam. 50 mm, 0-20(30) MHz, 3 W, 2 turns
|
|
|
HFRA 5158
| |
Circular Transmitting Loop Antenna diam. 180 mm, 0-2 MHz, 5 W, 10 turns
|
|
|
HFRA 5159
 |
Circular Transmitting Loop Antenna diam. 250 mm, 0-400 kHz, 5 W
|
|
|
HFRA 5170
 |
Cal. Loop 3 W, diam. 100 mm, 0-30 MHz, 1 turn, 250 Ohm
|
|
|

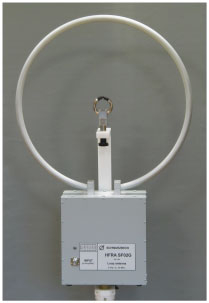

HFRA SF02G
 |
Tuneable resonant magnetic loop antenna to generate extremely high magnetic fields in the range 10 kHz to 30 MHz acc. to VG95373-13:2008-11 and VG95373-23:2008-11. Including sensor loop HFRAE 5163 und control cable.
|
|
|

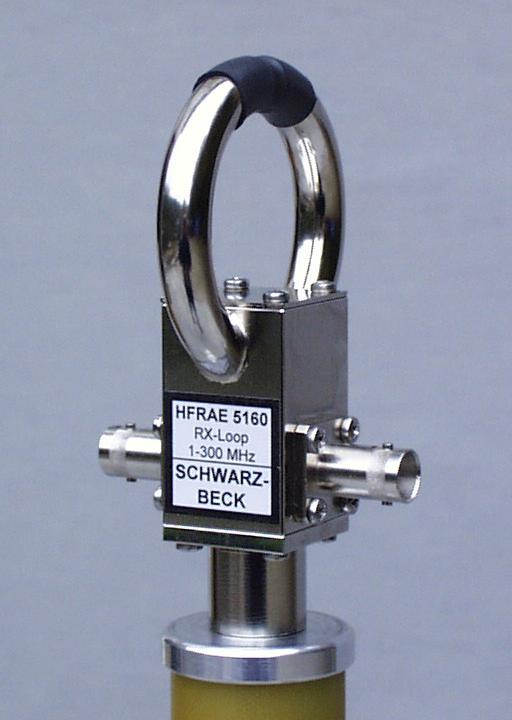

HFRAE 5160
 |
Receiving VHF – UHF loop antenna, diam. 50 mm, 2-300 MHz, Transformer
|
|
|

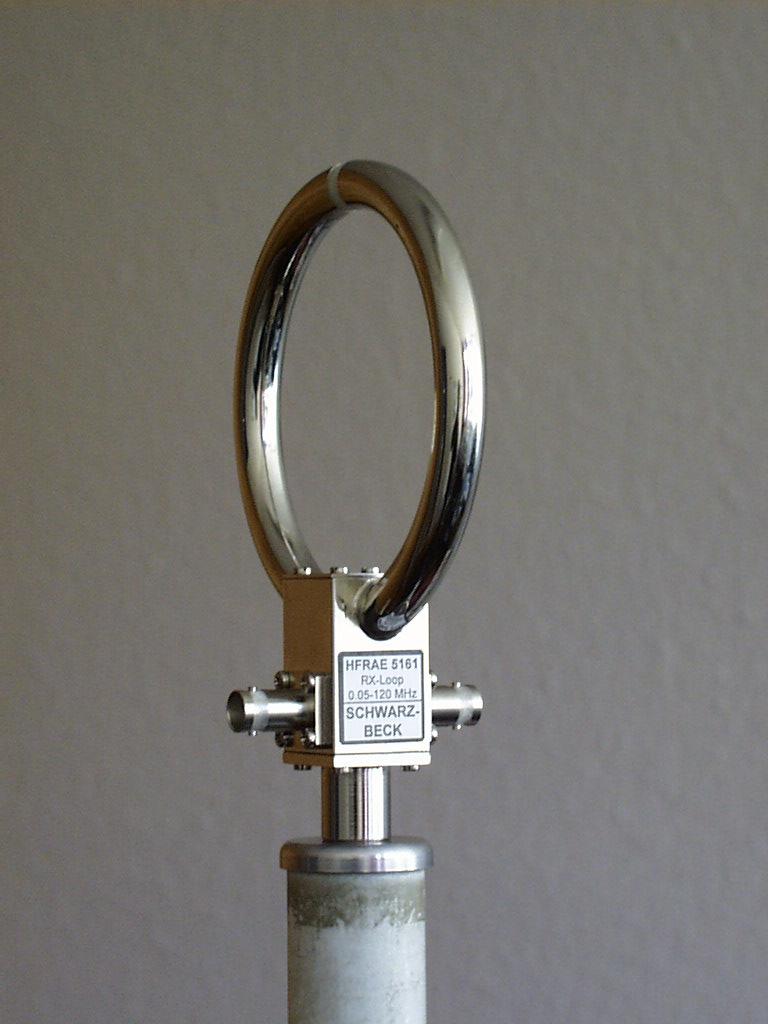

HFRAE 5161
 |
HF RX Loop, diam. 100 mm, 70 k-120 MHz, 1 turn, Transformer
|
|
|

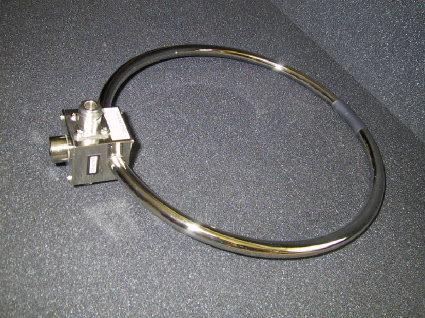

HFRAE 5162
 |
VLF-HF RX Loop, diam. 250 mm, 50 k-30 MHz, 1 turn, Transformer
|
|
|
HFRAE 5163
 |
Passive magnetic loop antenna 9 kHz – 300 MHz, 1 turn, transformer, diam. 50 mm
CISPR 15 3-dimensional loop antenna van Veen
|
|
|

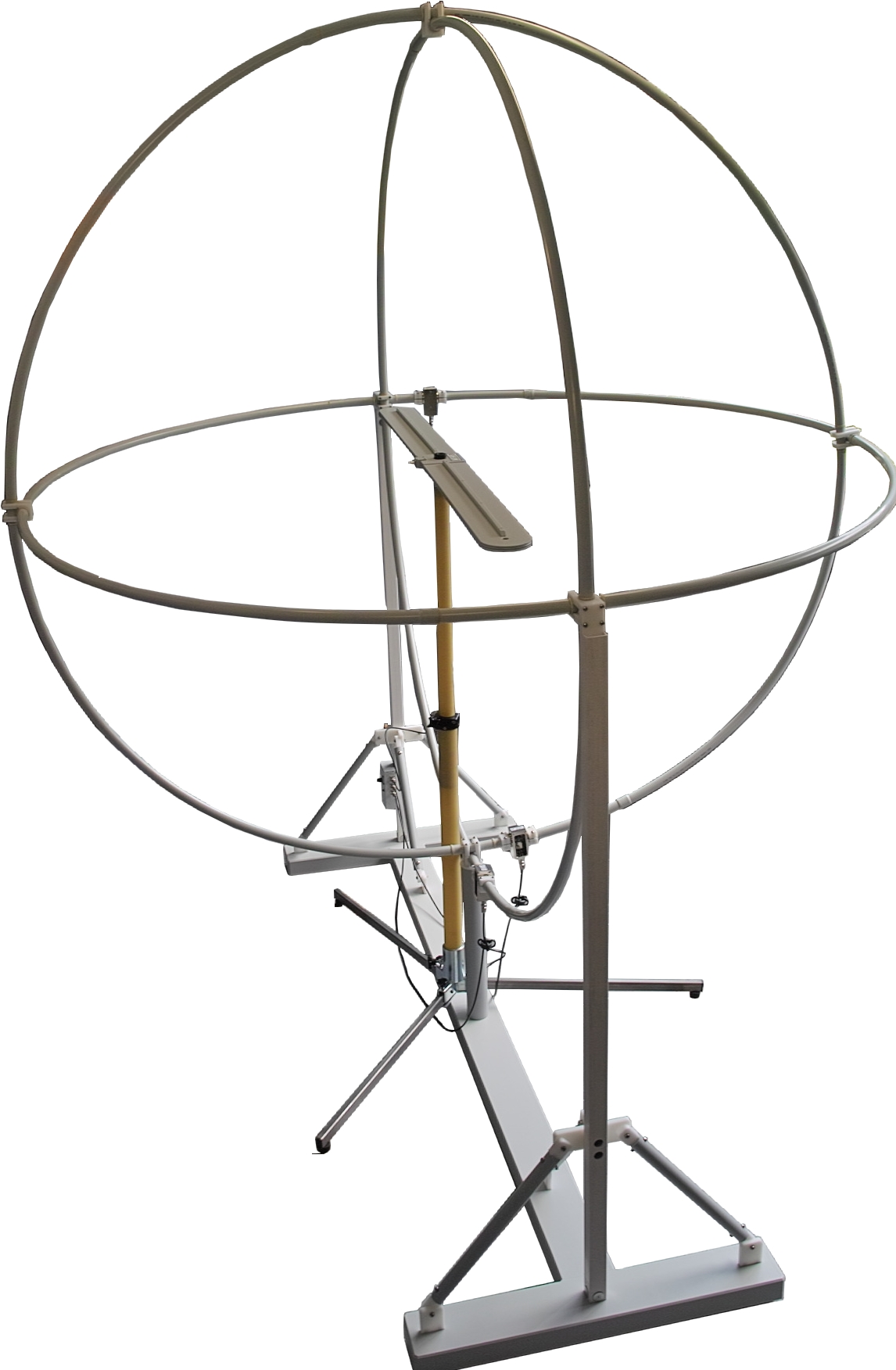

HXYZ 9170
 |
3-dimensional large loop antenna, diam. 2 m, acc. EN 55015 / CISPR 15, Socket and Coaxial switch recommended
|
|
|

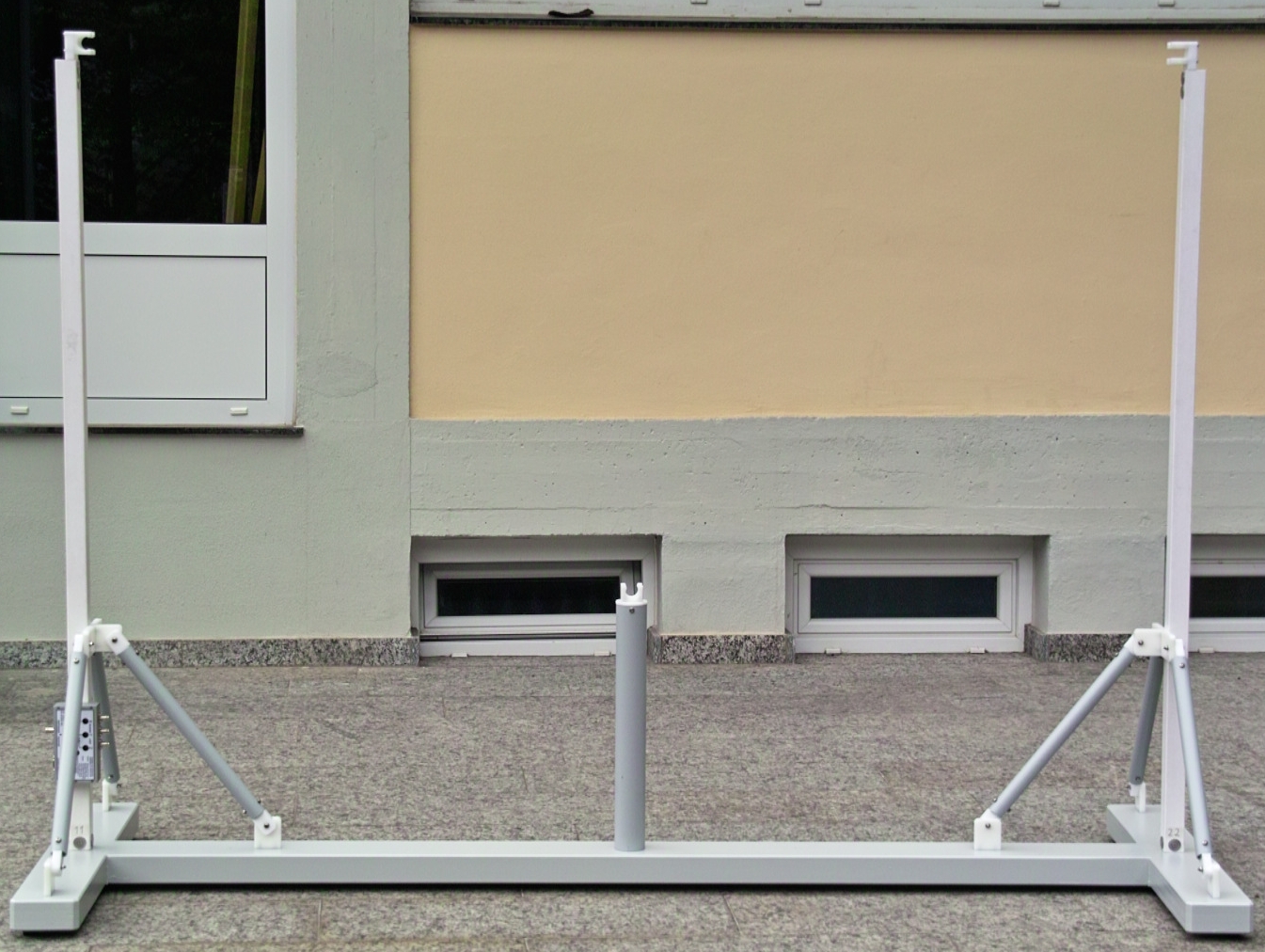

HXYZ 9170 Sockel
 |
Socket and mounting equipment for large loop HXYZ 9170
|
|
|

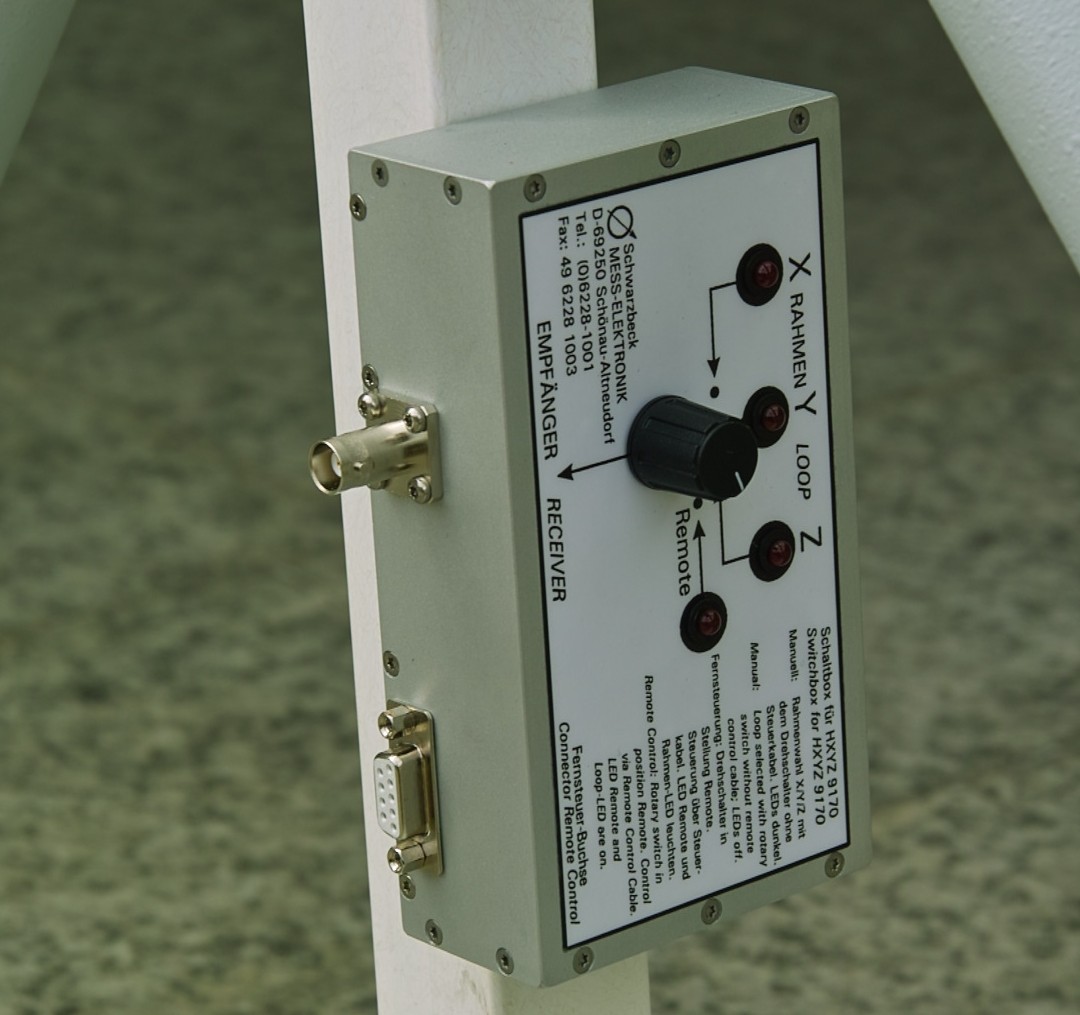

HXYZ 9170 Umschaltbox
 |
3 in one coaxial switch for manual / remote operation including cable set (3 BNC cables with braid current blockers) for large loop HXYZ 9170
[Picture]
|
|
|

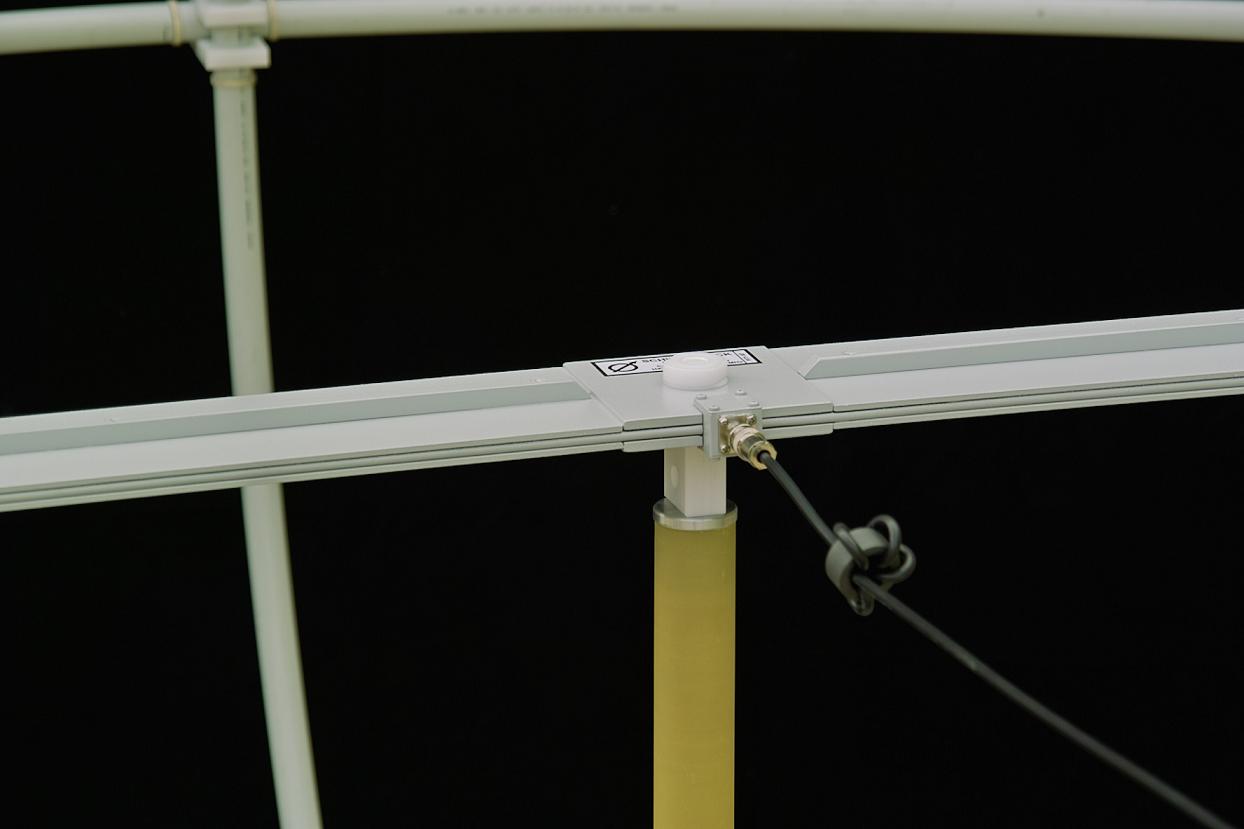

HFCD 9171
 |
Calibration Balun / Dipole for HXYZ 9170 (recommended accessory: AM 9144)
|
|
|

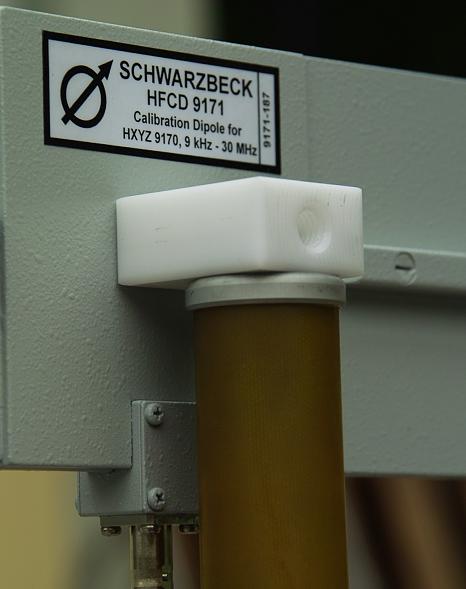

CDA 9271
 |
Adapter to hold HFCD 9171 on AM 9144, 3/8’’ female large camera thread.
|
|
|
MZB 1513
 |
Active magnetic loop antenna acc. to CISPR 16, 9 kHz to 30 MHz, constant antenna factor 20 dB/m with built in NiMH-batteries, detachable glass fiber handle 180 mm. Optimized for mobility.
|
|
|
Opt. ACS 110
| |
Option: Charger ACS 110 for FMZB 1513.
|
|
|
CCA 1513
| |
Transport case for FMZB 1513 and accessories.
|
|
|
Opt. 500 mm Handle
| |
Option for FMZB 1513: Additional glass fiber handle of 500 mm length.
|
|
|
FMZB 1519
 |
Active magnetic loop antenna acc. to CISPR 16, 9 kHz to 30 MHz, constant antenna factor 20 dB/m, built in rechargeable battery, charger ALCS 2-24A.
|
|
|

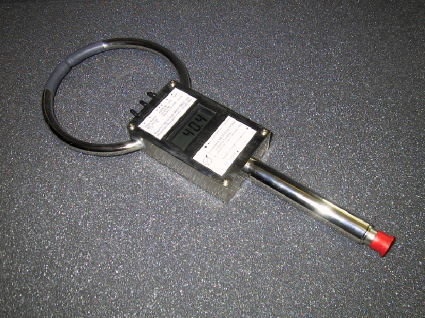

HMDA 1545
 |
Handheld magnetic field meter, LCD, acustic fieldstrength indication with tone generator, 9 kHz- 50 (80) MHz, 200µA/m … 1 A/m, 6 x Type AA NiMH.
[Manual] [Picture]
|
|
|
HMDA 1545 Opt. ACS 410
| |
Option: ACS 410 charger for HMDA 1545
|
|
|
HFS 1546
 |
Active magnetic Field Probe with shielded 50-mm-Loop, 150 kHz – 400 MHz. [Shorter version] available on request.
|
|
|
FMZB 1527
 |
Calibrated hand-held Magnetic Loop Antenna, 9 kHz – 30 MHz, 150 mm diam. for EMI Rcvrs. max. fictive E level 150 V/m (0.4 A/m), AF: 40 dB/m
|
|
|
FMZB 1538
 |
Magnetic field meter 9 kHz – 30 MHz, max. fictive E level 75 V/m (0.2 A/m), separate power supply cable.
|
|
|
FMZB 1548
 |
Magnetic field meter 9 kHz – 30 MHz, 20A/m, with separate power supply cable
|
|
|
FSH3D
 |
Isotropic H-Field Antenna for the Rohde und Schwarz handheld spectrum analyser FSH or the TS-EMF System 9 kHz - 200 (300) MHz. Light weight low attenuation radom, outer diameter ca. 150 mm. The selection of the active loop and the power supply for the antenna is provided by the included short cable that can directly be connected to the R&S FSH.
|
|
Total 176
